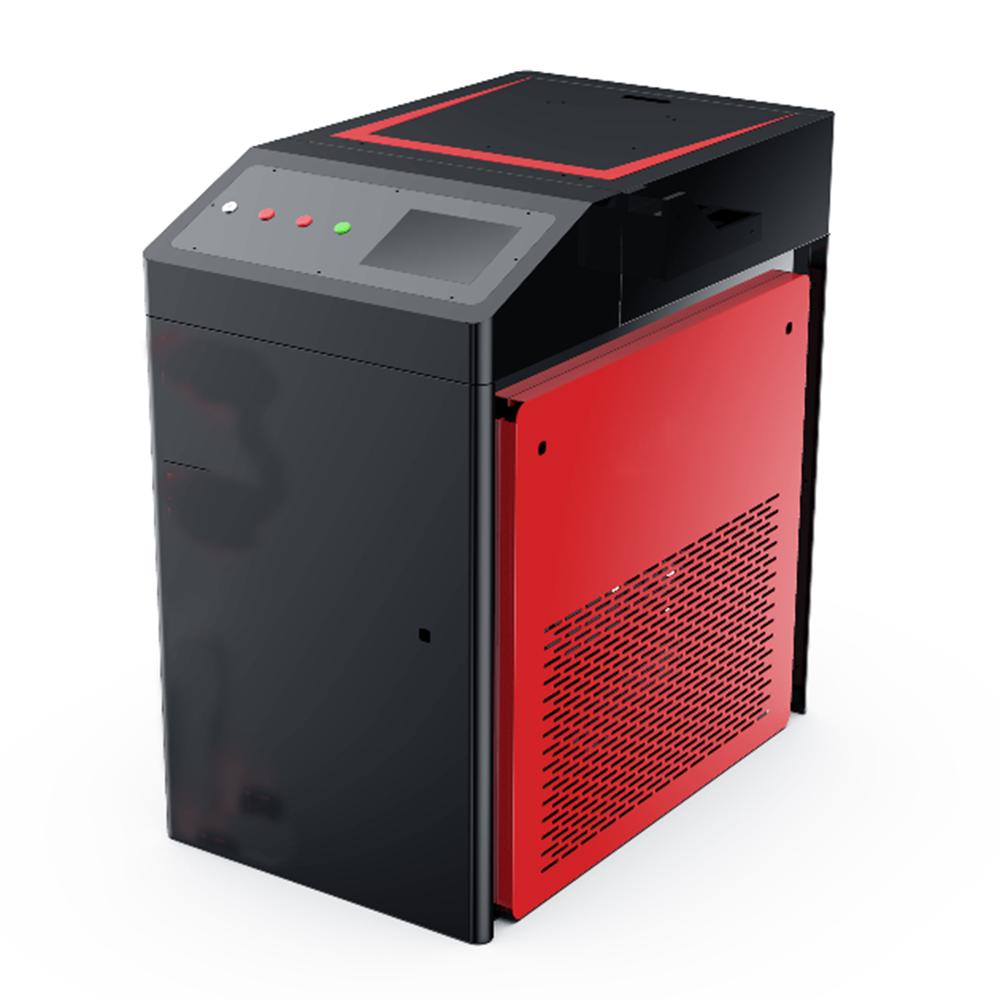

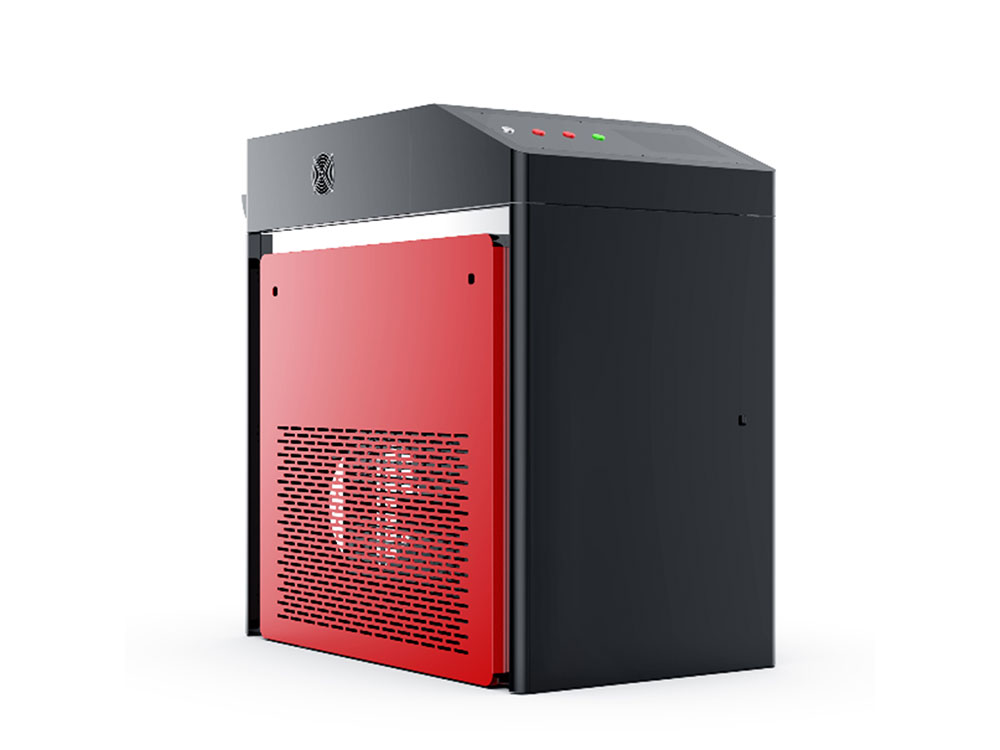

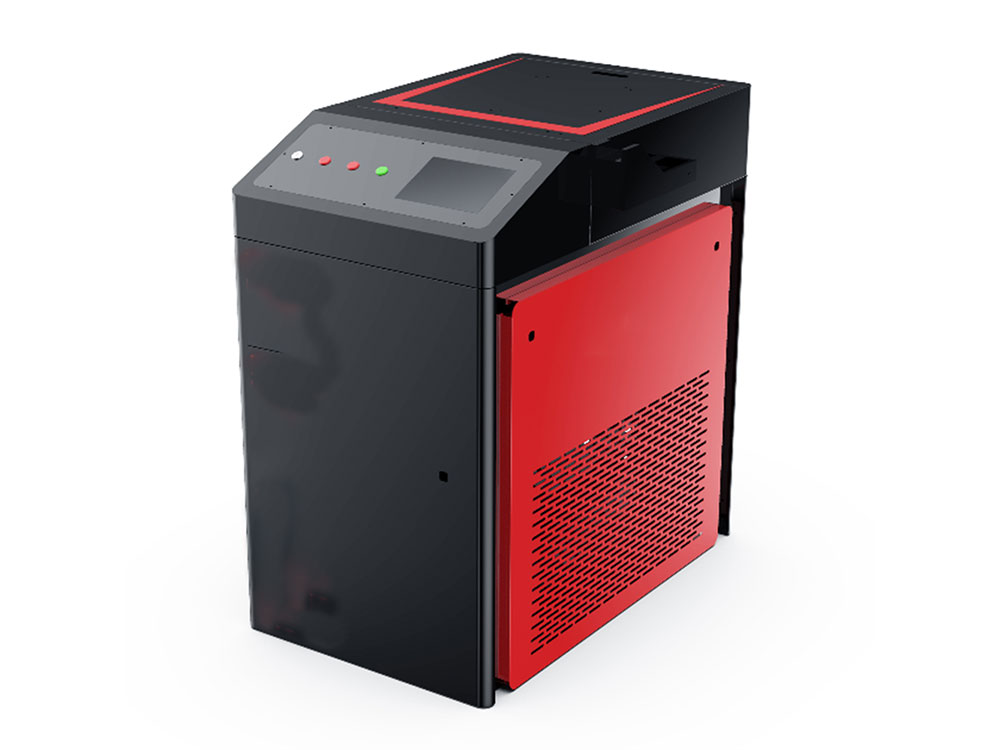

china IFWH1500 1500W Laser Welding Machine Handheld Wobble Head Laser Welder With Auto Wire Feeder

IFWH1500 1500W Laser Welding Machine Handheld Wobble Head Laser Welder With Auto Wire Feeder

1.Easy to control and operate with one hand.
2.Fast welding speed, 2-10 times faster than traditional welding.
3.Welding consumables are few, service life is long, more economical.
4.Smooth and even weld seam, large welding depth, no grinding.
5.No weld marks,no blackening,no discoloration.
6.The only welding head in the market with 6 light spot modes.

Handheld laser welding machine is a type of portable fiber laser beam welding machine which couples the high energy fiber laser beams into the optical fiber, after long-distance transmission, then transformed into parallel lights through collimating mirror to be focused on the work piece to implement the welding.

IFWH1500 handheld laser welding machine adopts the latest generation of fiber laser machine, which has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. It can be welded on metal materials such as thin stainless steel plate, iron plate and galvanized plate. Perfectly replace traditional argon arc welding, spot welding and other processes.

Comparison item Laser welding Argon arc welding
Comparison item	Laser welding	Argon arc welding
Welding method	Spot welding or continuous	Spot welding
Applicable materials	Stainless steel, carbon steel, galvanized sheet,aluminum, etc.	Stainless steel, carbon steel, galvanized sheet
Thickness requirements	0.5—4mm	1—12mm
Workpiece deformation/undercut	Small	Big
Welding speed	0—8m/min	0—1m/min
Subsequent processing	Light or no sanding	Need polishing
Operation difficulty	Simple	Complex
Safety and environmental protection	Relatively safe and environmentally friendly	Not safe and environmentally friendly
Labor costs	General workers (can operate after simple training)	Professional welder
Wearing parts	Lens, nozzle	Argon
Supplies	Argon/Nitrogen	Argon

Technical Parameters
Power	1000W / 1500W / 2000W
Laser Source	Reci / MAX / JPT / Raycus
Cooling Chiller	Industrial Water Chiller
Inside Working Environment Temperature Range	15-35 ℃
Humidity Range of Working Environment	< 70% No Condensation
Welding Thickness Recommendations	0.5 – 3mm
Welding Gap Requirements	≤0.5mm
Working Voltage	220V / 380V
Dimension (LWH)	1200x650x1345mm
Net Weight	245-280KG
Gross Weight	280-320KG

Features

1. Handheld welding head is equipped with 1500 watt fiber laser, flexible, enabling outdoor welding.
2. Fast welding speed, 2~10 times faster than traditional welding.
3. The welding seam smooth and beautiful, large depth, small taper, don’t need polish, save time.
4. No deformation or welding scar, firm welding of the workpiece.
5. Laser welding has less consumables, low energy consumption and long service life.
6. Safety, easy operation and more environmentally friendly.

Application

Handheld Fiber Laser Welding Machine can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.
