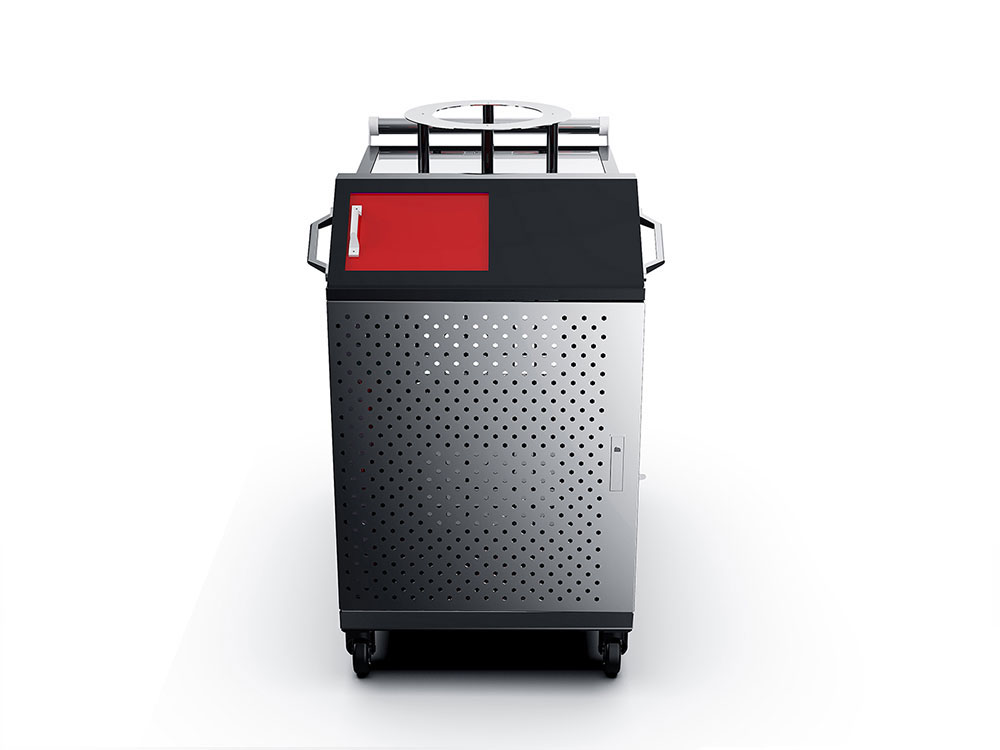

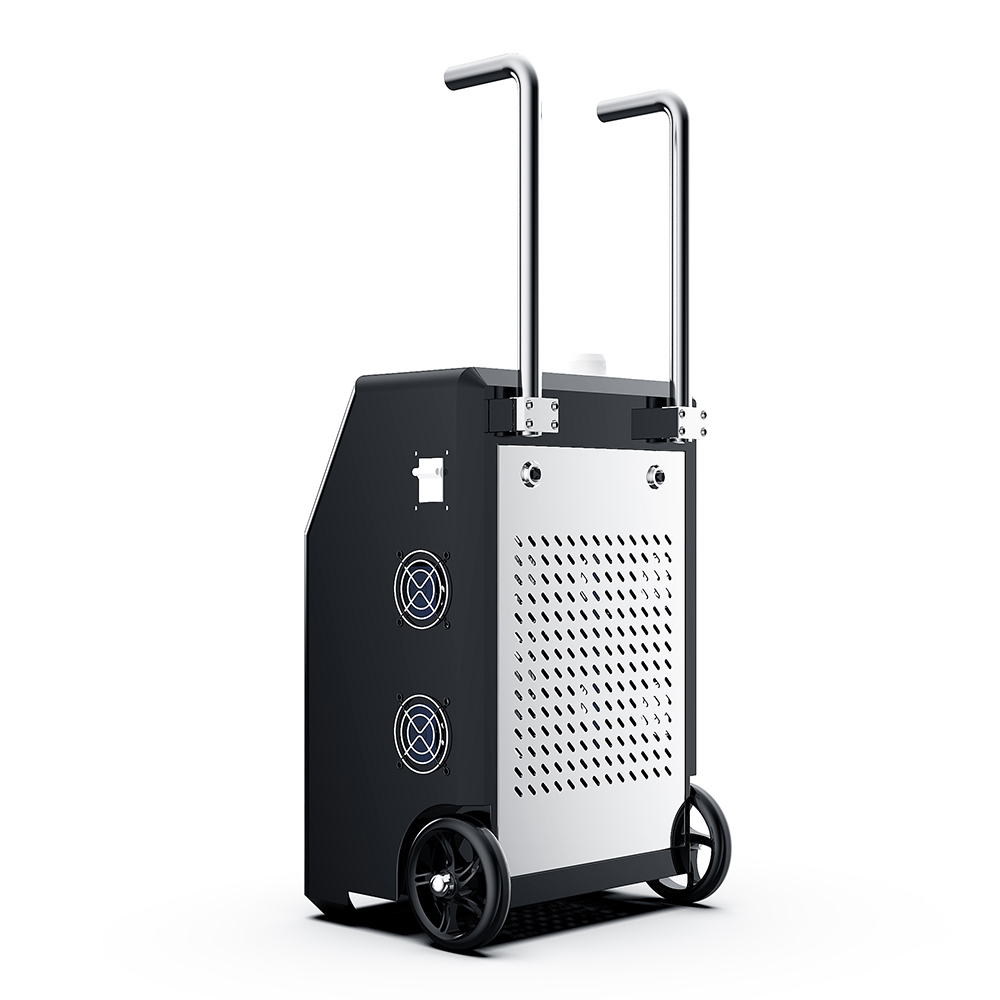

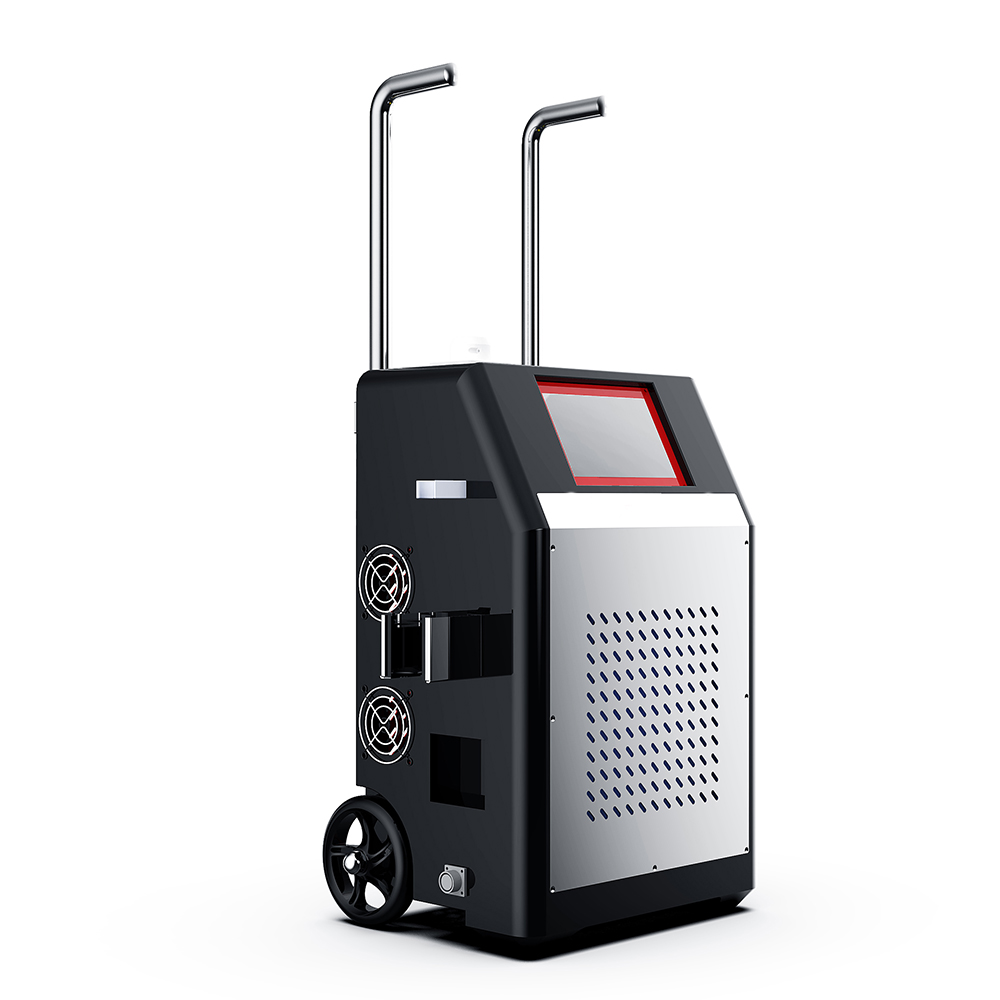

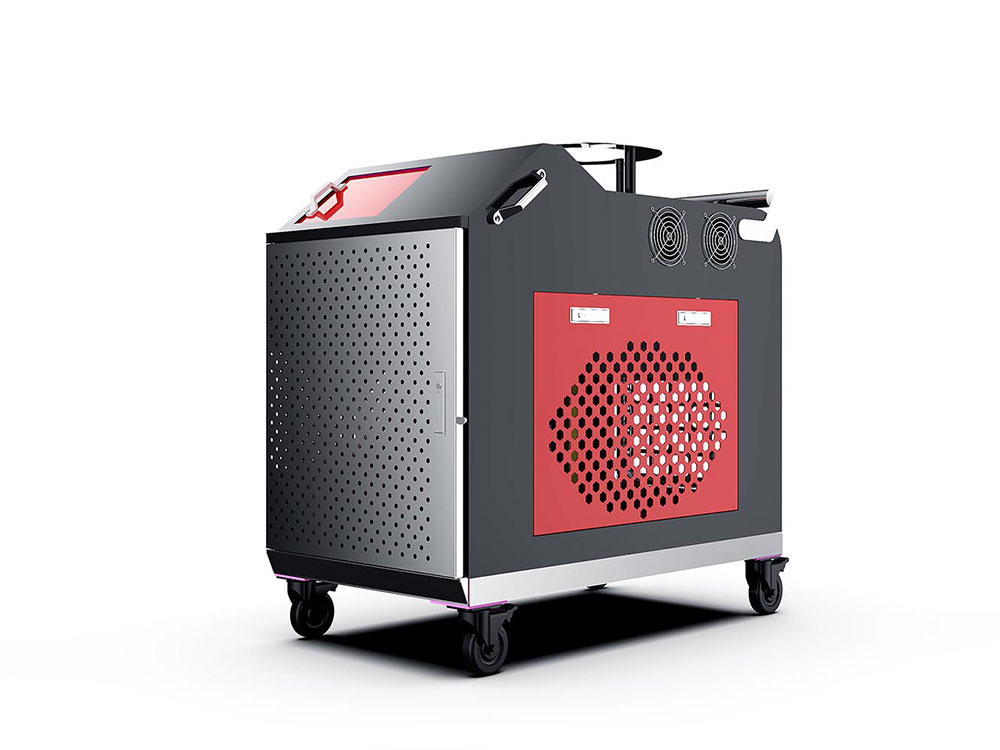

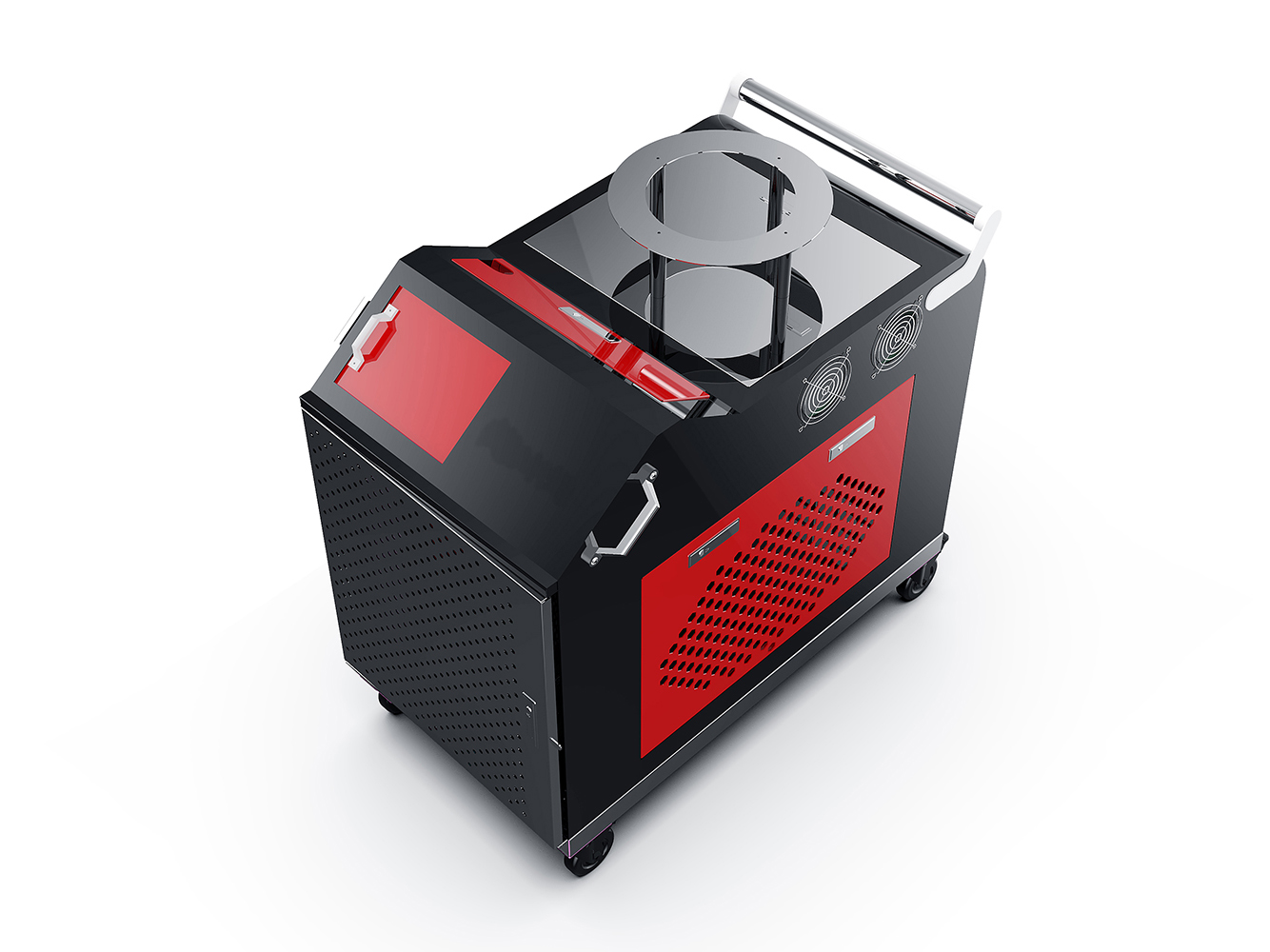

IFCL100 100W Pulsed Fiber Laser Cleaning Machine

Description



Pulsed fiber laser cleaning machine is a new high-tech machine for surface cleaning. It is easy to install and operate. It can work without chemical reagent or water.Make your materials as clean as new.
Industrial handheld fiber laser cleaner for cleaning rust paint oil Laser cleaning technology refers to the use of high-power density laser beams to irradiate the surface of the workpiece, so that the dirt, rust or coating on the surface can be evaporated or peeled off instantly, so as to achieve the cleaning process.Make your materials as clean as new.
The laser rust remover is a new representative surface treatment of high-tech products, which is easy to install, operate and realize automation. This is easy to operate, and no chemical reagents, media, dust, or water is needed to connected to the power source cleaning. It can remove resin, paint, oil, stains,dirt, rust, coating, plating and oxidation on the surface of the object.









Feature

Quick derusting
The rust layer of the relatively fluffy surface of the object is cleaved by physical blasting, and the high-speed spot is moved to form a plume to discharge the cleaning debris to complete the cleaning. Mainly used in metal descaling.

High efficiency degreasing
The high-energy pulsed laser is focused on the surface of the cleaning object, irregular structures such as dirt and rust, and the dark surface absorbs the laser energy and the plasma energy formed on the metal surface, and is instantaneously vaporized away from the base material.

Environmental protection paint removal
The final reaction product is discharged in the form of a gas. The laser of the special mode is lower than the destruction threshold of the master batch, and the coating can be peeled off without damaging the base metal.





Fiber laser cleaning machine IFCL is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning,gluing pre-treatment,removal of oil and grease,paint removal,surface cleaning,stain removal,tool cleaning,historic restoration,selective paint removal and precise cleaning.
Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.





Pulsed fiber laser cleaning machine
1.No consumables, no chemical pollution.
2.No noise, energy saving and electricity saving.
3.No contact, no grinding, no stress, minimal damage to the substrate.
4.Remove pollution particles below nanometer level, high cleanliness.
5.Optical fiber transmission, movable operation, can clean the hard-to-reach parts.
6.Realize rapid cleaning of heavy pollutants and high-speed cleaning of light pollutants.
7.Laser cleaning system is stability, no maintenance. IFCL-100 IFCL-200 IFCL-500
100W 200W 500W
Laser Wavelength 1064±5nm
Optional Hand/automatic
Scanning width 10-100mm
Working temperature 0-60°C
Pulse width(ns) 130-160
Power adjustment range(%) 10-100(Gradient adjustable)
Consumption 1000W 2500W 4000W

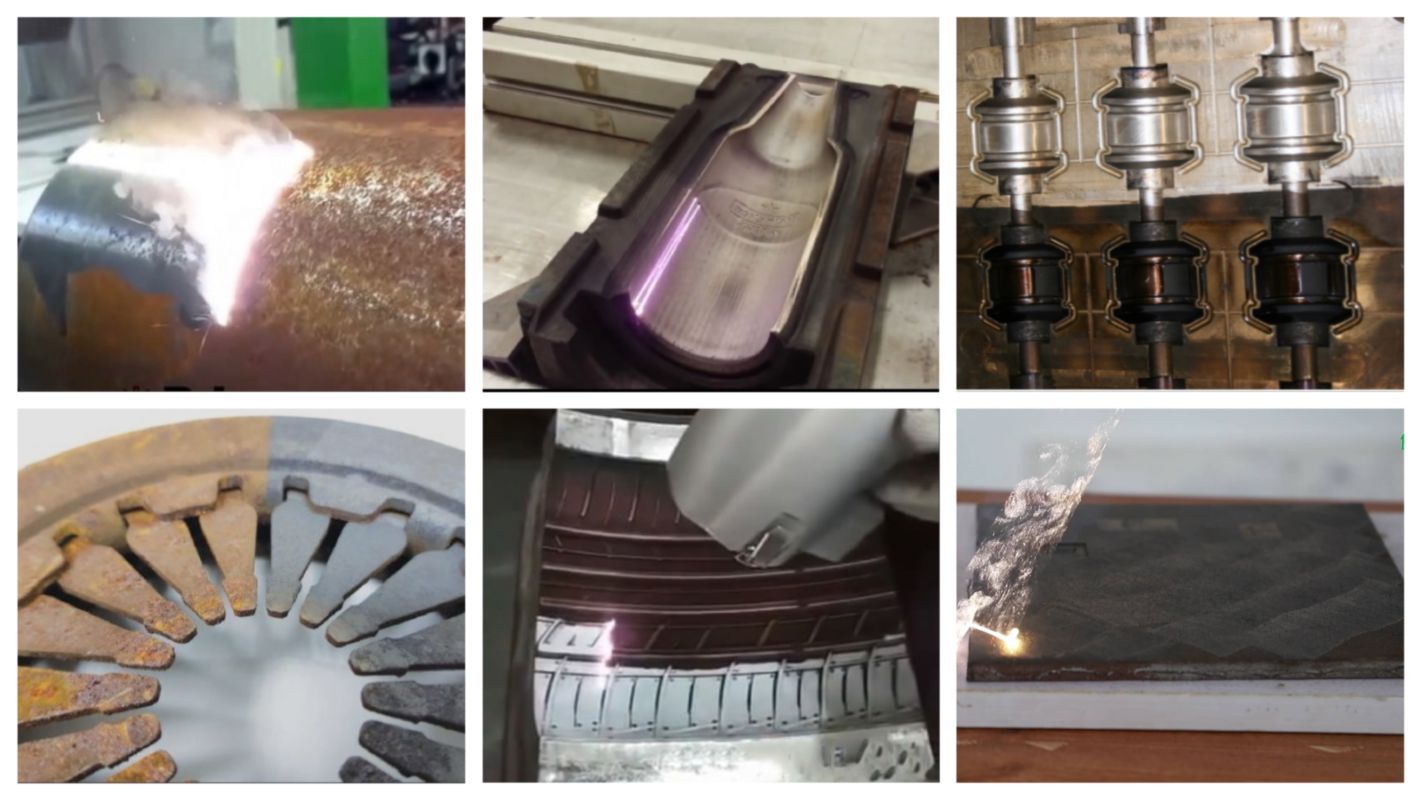

Cleaning effect display
