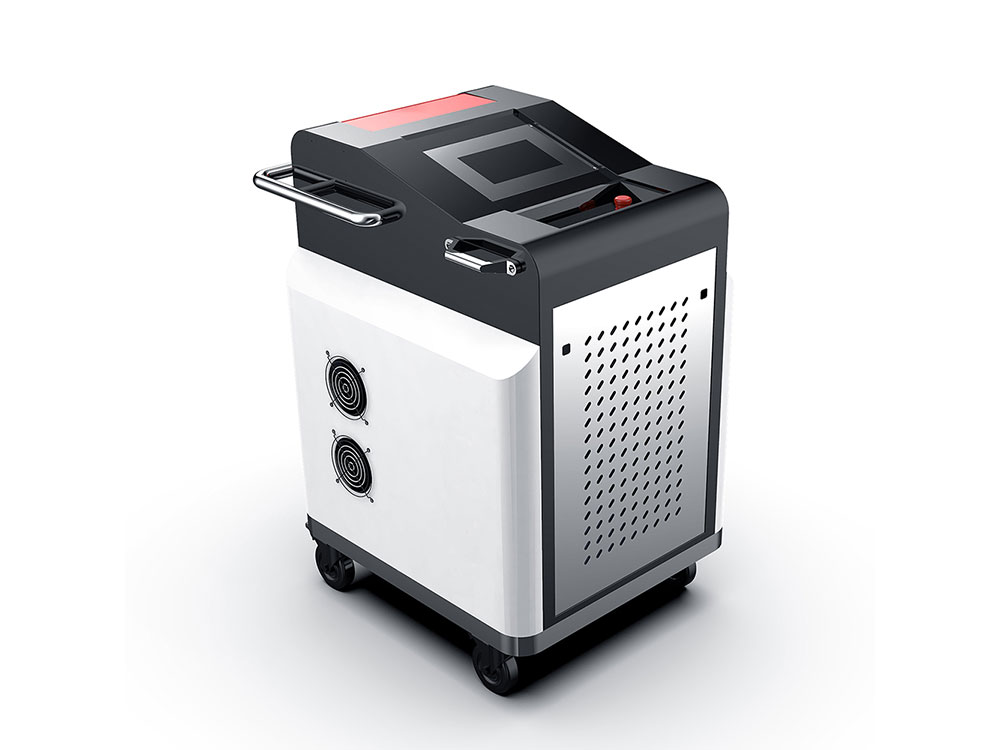

The laser cleaning machine produced by IF Intelligent Technology is a new generation of high-tech products for surface cleaning. It is very easy to install and operate. The machine needs no chemical reagent, no medium, dust-free and water-free cleaning, with the advantages of automatic focus, crank surface cleaning and high surface cleanliness.Laser cleaning machine can remove the object surface resin, the paint, the oil pollution, Stains, dirt, rust, coatings, coatings and oxide coatings are widely used in the industry, covering ships, steam repairs, rubber molds, high-end machine tools, track and environmental protection.
The laser cleaner is automated and easy to setup and use. The operation is simple, turn on the machine to perform cleaning without chemicals, media, and water. It has the advantages of manual adjustment of focus, surface cleaning, and high cleanliness of the surface. It can remove resin, oil stains, stains, dirt, rust, coating, plating, paint on the surface of objects.
Comparison of Different Cleaning Methods
Comparison item
Laser cleaning
Chemical cleaning
Mechanical cleaning
Dry ice cleaning
Ultrasonic cleaning
Cleaning Method
Laser,non-contact cleaning
Chemical cleaning agent contact type
Mechanical/sandpaper contact type
Dry ice,non-contact
Cleaning agent contact type
Workpiece Damage
Slight
Damaged
Damaged
No Damage
No Damage
Cleaning Efficiency
High
Low
Low
Medium
Medium
Cleaning effect
Very good high cleanliness
Generally,uneven
Generally,uneven
Excellent,uneven
Excellent small cleaning area
Safety/Environmental Protection
No pollution
Polluted environment
Polluted environment
No pollution
No pollution
Consumables
Only electricity
Chemical cleaning agent
Sandpaper,griding wheel whetstone,etc.
Dry ice
Dedicated cleaning fluid
Operation
Easy to operate handheld or automated
Complicated process high requirements need pollution protection
Manual operation need pollution protection
Easy to operate handheld or automated
Easy to operate but need to add consumables manually
Cost investment
High initial investment,no consumables,low maintenance cost
Low initial investment,high cost of consumables
High initial investment,low labor cost for consumables
Medium investment,high cost of consumables
Low initial investment,medium cost of consumables
Specification
Model
IFCL-1000
IFCL-1500
IFCL-2000
Laser Power
1000W
1500W
2000W
Laser Wavelength
1064±5nm
Machine Power
5000W
6000W
7000W
Optional
Hand/automatic
Working temperature
0-60°C
Cleaning width(mm)
1-160
Machine size/package size
1380x620x1050
1440x680x1230
1150x620x1630
1200x650x1360
1150x620x1630
1200x650x1360
Gross weight/Net weight
280KG/240KG
280KG/240KG
300KG/260KG
Application
rust removal, paint removal, oil removal, cultural relic restoration, glue removal, coating removal etc.
Advantages: Easy to control, easy to integrate automatically, no chemical reagents, surface cleaning, high cleanliness, high precision, high efficiency, environmental protection, safety and reliability, almost no damage to the surface of the substrate. It can solve many problems that cannot be solved by traditional cleaning, including metal rust, metal particles, dust, etc.,
