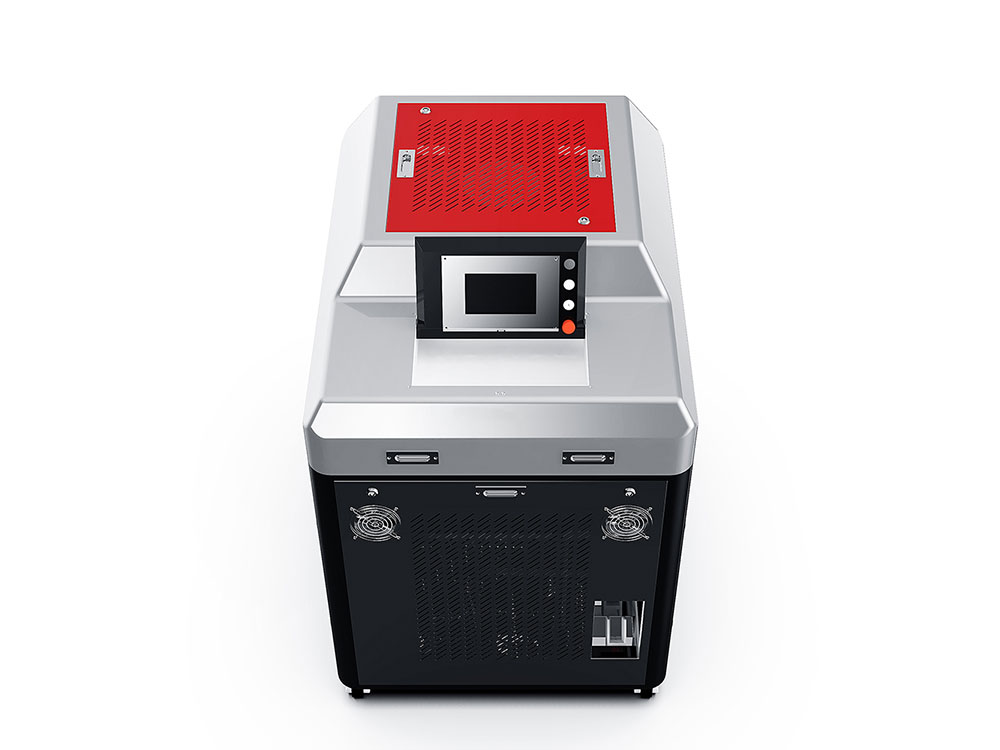

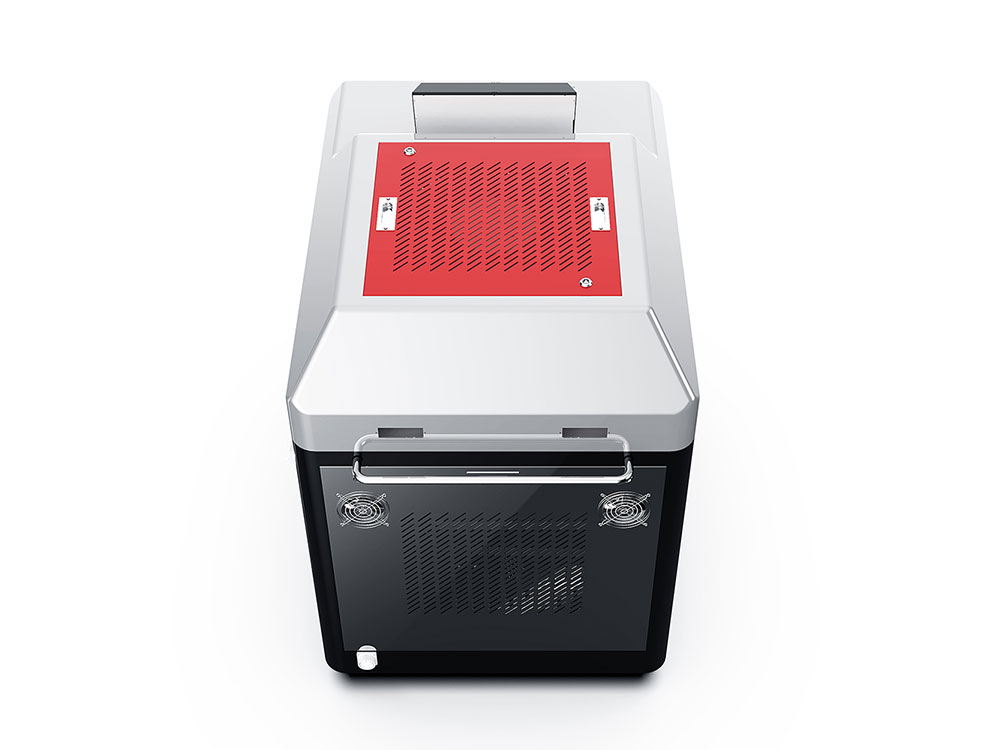

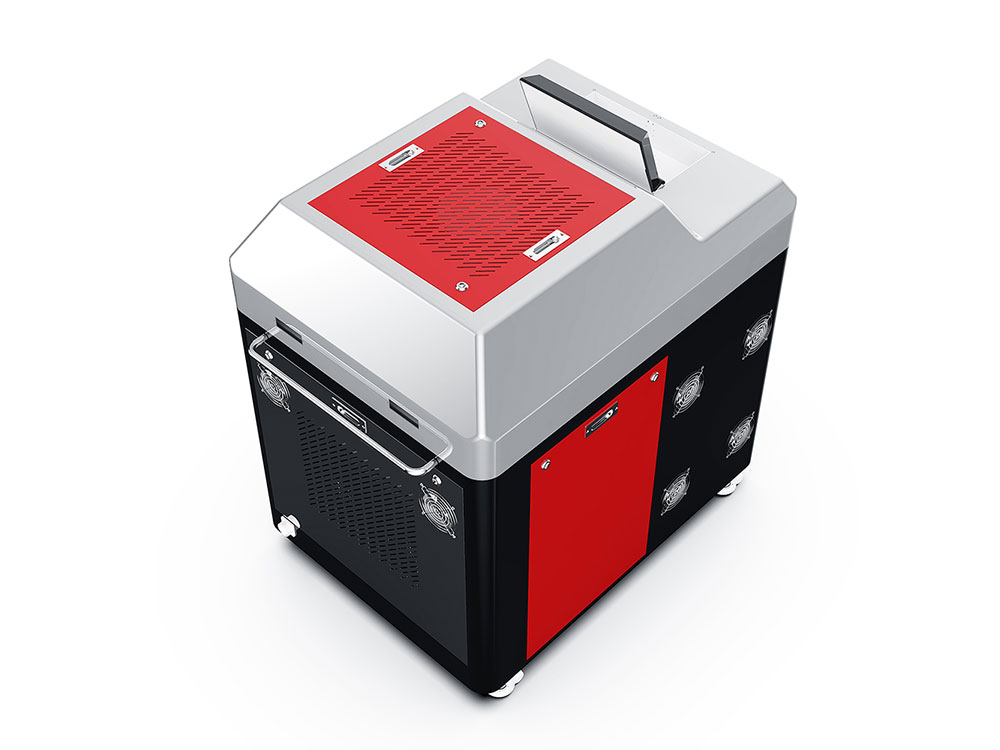

Laser rust removal machine is a type of manual laser cleaning machine composed of fiber laser generator, laser rust removal gun, and laser cleaning system, which uses pulsed laser or CW (Continuous Wave) laser to irradiate the metal surface, and the coating layer can instantly absorb the energy of the focused laser, so that the rust, coating or oil on the surface can be stripped instantly or evaporation, high-speed and effective removal of the coating attached to the metal surface, laser rust removal, basically will not damage the metal substrate. Laser rust removal machine is also known as laser rust removal tool, laser rust cleaning machine, laser rust cleaner, laser rust remover, laser rust removing tool, laser rust removing machine, laser descaler machine.
Features
1.Non-contact cleaning,without damage substrate.
2.High precision cleaning,selective washing.
3.Without any chemical cleaning fluid and no consume materials,safe and environment protecting.
4.Good cleaning effect and time-saving.
5.Laser cleaning system is stability,almost no maintenance.
Comparison of Different Cleaning Methods
Comparison item
Laser cleaning
Chemical cleaning
Mechanical cleaning
Dry ice cleaning
Ultrasonic cleaning
Cleaning Method
Laser,non-contact cleaning
Chemical cleaning agent contact type
Mechanical/sandpaper contact type
Dry ice,non-contact
Cleaning agent contact type
Workpiece Damage
Slight
Damaged
Damaged
No Damage
No Damage
Cleaning Efficiency
High
Low
Low
Medium
Medium
Cleaning effect
Very good high cleanliness
Generally,uneven
Generally,uneven
Excellent,uneven
Excellent small cleaning area
Safety/Environmental Protection
No pollution
Polluted environment
Polluted environment
No pollution
No pollution
Consumables
Only electricity
Chemical cleaning agent
Sandpaper,griding wheel whetstone,etc.
Dry ice
Dedicated cleaning fluid
Operation
Easy to operate handheld or automated
Complicated process high requirements need pollution protection
Manual operation need pollution protection
Easy to operate handheld or automated
Easy to operate but need to add consumables manually
Cost investment
High initial investment,no consumables,low maintenance cost
Low initial investment,high cost of consumables
High initial investment,low labor cost for consumables
Medium investment,high cost of consumables
Low initial investment,medium cost of consumables
Specification
Model
IFCL-1000
IFCL-1500
IFCL-2000
Laser Power
1000W
1500W
2000W
Laser Wavelength
1064±5nm
Machine Power
5000W
6000W
7000W
Optional
Hand/automatic
Working temperature
0-60°C
Cleaning width(mm)
1-160
Machine size/package size
1380x620x1050
1440x680x1230
1150x620x1630
1200x650x1360
1150x620x1630
1200x650x1360
Gross weight/Net weight
280KG/240KG
280KG/240KG
300KG/260KG
Fiber laser cleaning machine IFCL is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning,gluing pre-treatment,removal of oil and grease,paint removal,surface cleaning,stain removal,tool cleaning,historic restoration,selective paint removal and precise cleaning.
Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.
