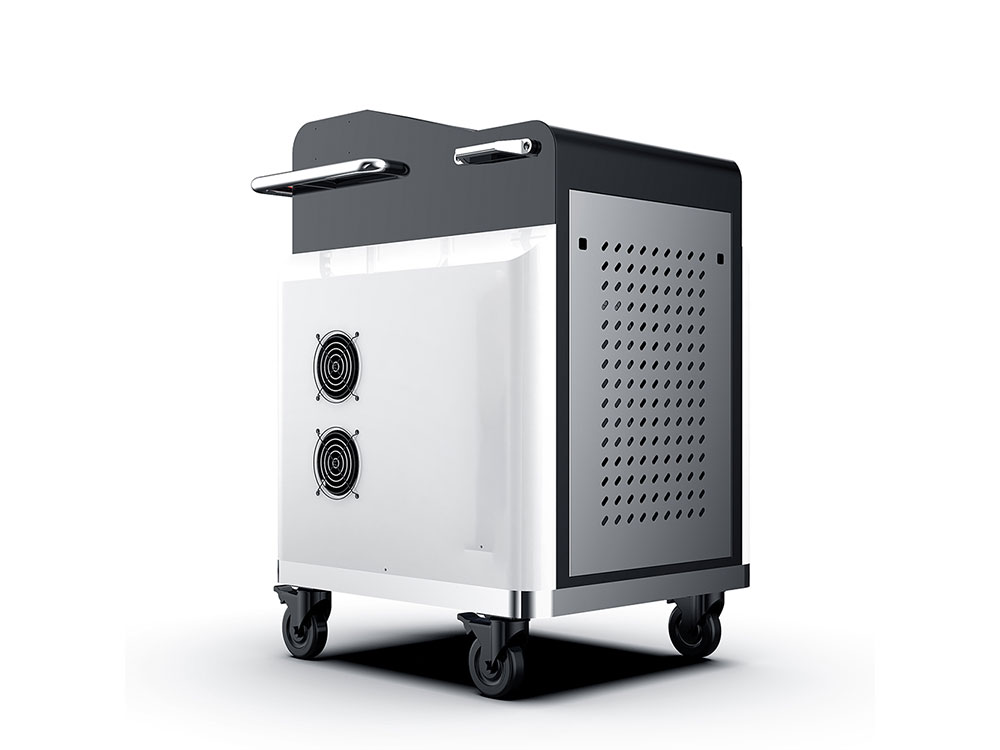

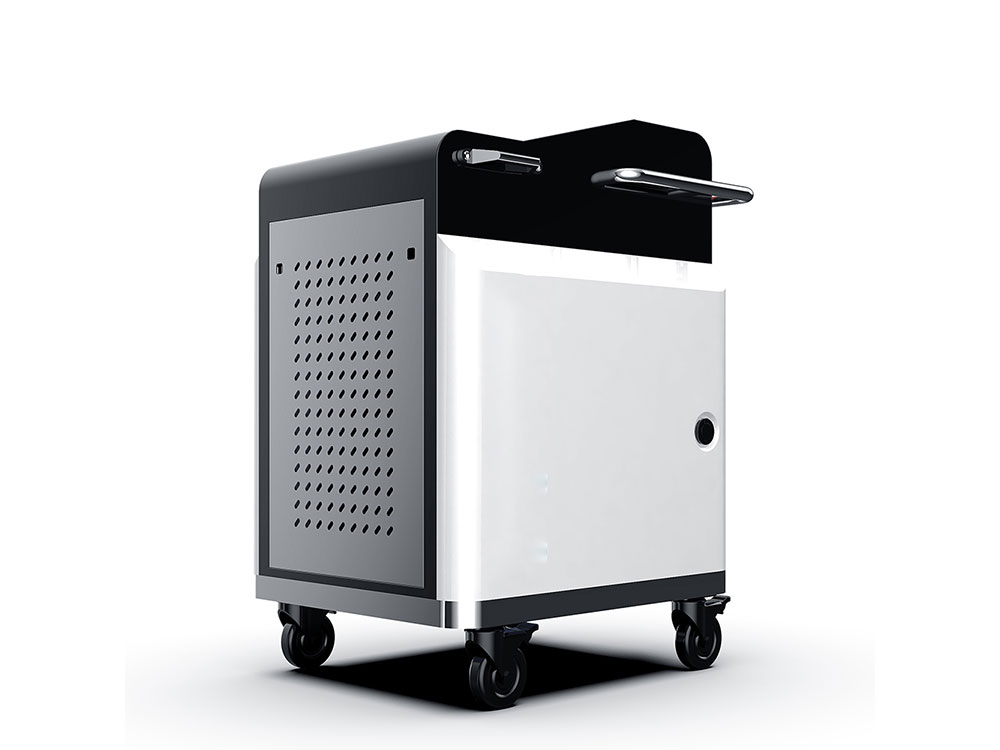

IFCL500 500W Hand-held Pulsed Laser Cleaning Machine For Rust Removal

Category:

Description

Pulsed fiber laser cleaning machine is a new high-tech machine for surface cleaning. It is easy to install and operate. Pulsed laser cleaning machine with pulse laser source and galvo clean head. If you have high-value products need to clean and without harm the base materials, that must be use pulsed laser cleaning machine system.It can work without chemical reagent or water.Make your materials as clean as new.

Laser cleaners are designed for laser degreasing, laser paint removal, laser zinc removal, laser film removal, laser coating. Laser cleaning machines are mainly used for rust removal from metal surface, paint removal treatment, plating, coating removal, oil, stain, dirt cleaning, and rubber mold residue cleaning.









Features

1.Using the best fiber laser in China
2.Non-contact cleaning, without damage
3.High precision cleaning, good precision of position cleaning, selective washing.
4.Without any chemical cleaning fluid and no consume materials,safe and environment-protect
5.Simple operation,hand-hold clean or with a mechanical hand to clean
6.Good cleaning effect and save time
7.Laser cleaning system is stability, almost no maintenance





Comparison of Different Cleaning Methods
Comparison item Laser cleaning Chemical cleaning Mechanical cleaning Dry ice cleaning Ultrasonic cleaning
Cleaning Method Laser,non-contact cleaning Chemical cleaning agent contact type Mechanical/sandpaper contact type Dry ice,non-contact Cleaning agent contact type
Workpiece Damage Slight Damaged Damaged No Damage No Damage
Cleaning Efficiency High Low Low Medium Medium
Cleaning effect Very good high cleanliness Generally,uneven Generally,uneven Excellent,uneven Excellent small cleaning area
Safety/Environmental Protection No pollution Polluted environment Polluted environment No pollution No pollution
Consumables Only electricity Chemical cleaning agent Sandpaper,griding wheel whetstone,etc. Dry ice Dedicated cleaning fluid
Operation Easy to operate handheld or automated Complicated process high requirements need pollution protection Manual operation need pollution protection Easy to operate handheld or automated Easy to operate but need to add consumables manually
Cost investment High initial investment,no consumables,low maintenance cost Low initial investment,high cost of consumables High initial investment,low labor cost for consumables Medium investment,high cost of consumables Low initial investment,medium cost of consumables



Specification
Model IFCL-100 IFCL-200 IFCL-500
Laser Power 100W 200W 500W
Laser Wavelength 1064±5nm
Optional Hand/automatic
Scanning width 10-100mm
Working temperature 0-60°C
Pulse width（ns） 130-160
Power adjustment range（%） 10-100(Gradient adjustable)
Consumption 1000W 2500W 4000W





Fiber laser cleaning machine IFCL is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning,gluing pre-treatment,removal of oil and grease,paint removal,surface cleaning,stain removal,tool cleaning,historic restoration,selective paint removal and precise cleaning.
Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.



Cleaning effect display
