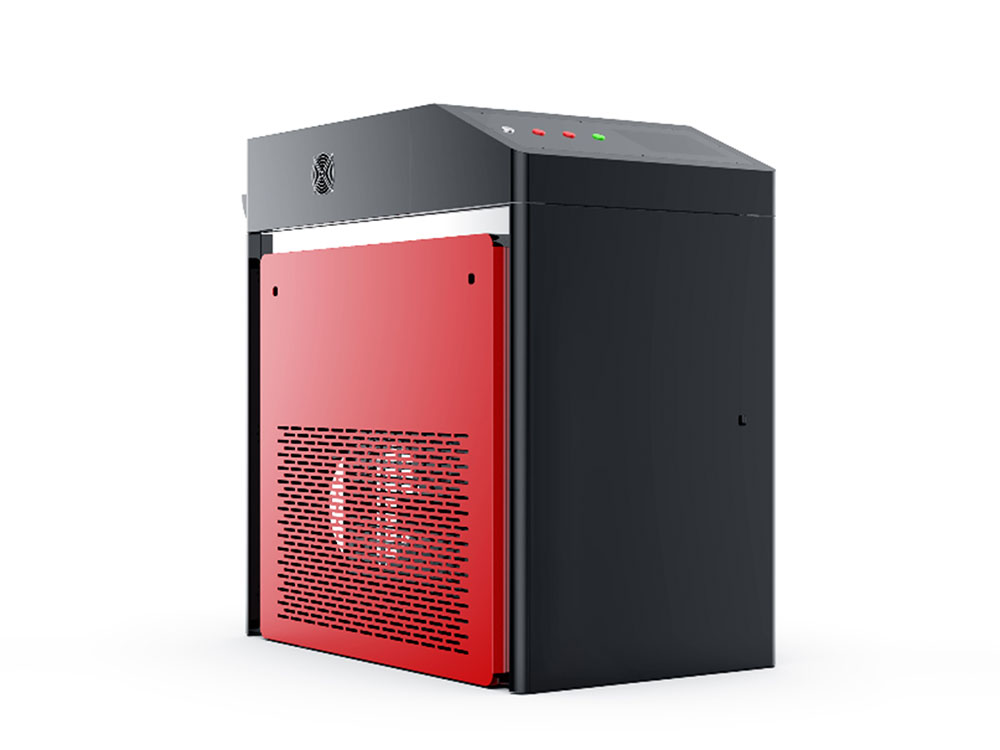

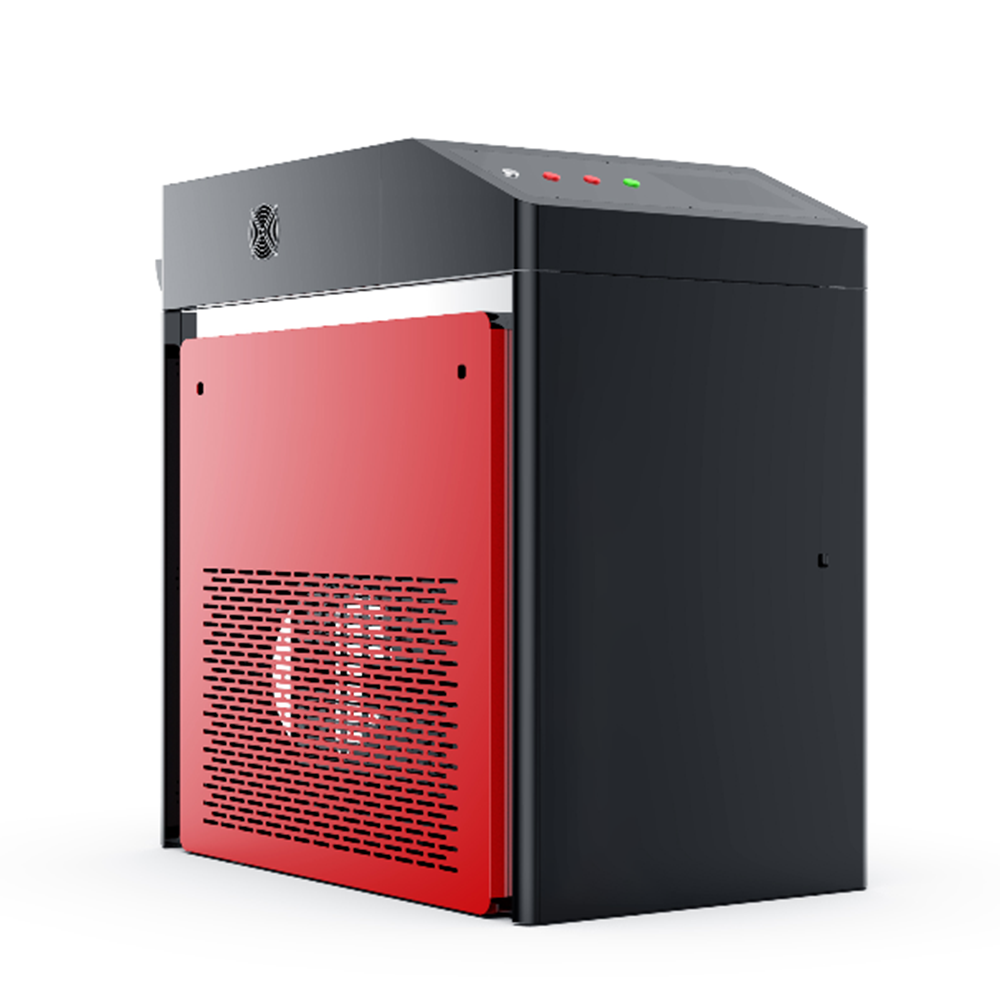

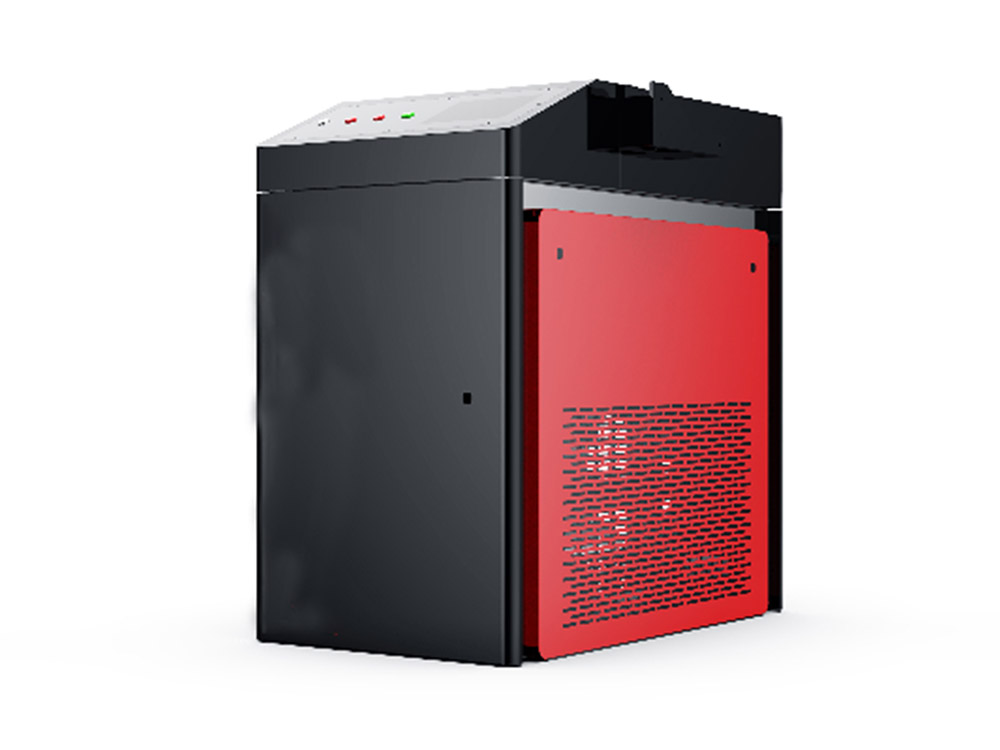

IFWH1000 1000W Handheld Fiber Laser Welding Machine

1.Easy to control and operate with one hand.
2.Fast welding speed, 2-10 times faster than traditional welding.
3.Welding consumables are few, service life is long, more economical.
4.Smooth and even weld seam, large welding depth, no grinding.
5.No weld marks,no blackening,no discoloration.
6.The only welding head in the market with 6 light spot modes.

Fiber Laser Welding is a welding technology used to create a strong joint between several metal components with fiber laser. Fiber laser produces a beam of high-intensity that is concentrated into one spot. This concentrated heat source enables fine, deep welding with high welding speed.
Handheld fiber laser welding machine is used to weld metal plates and metal tubes.

Features

1.Handheld welding head is equipped with 1000-2000 watt fiber laser power, flexible and convenient, longer welding distance. Welding influence area is small, will not lead to deformation, blackening, traces on the back of the problem, and the welding depth is large, solid welding and full melting.

2.Integrated intelligent management of welding system, built-in drive control system circuit, high photoelectric conversion rate, low energy consumption, 2-10 times faster than traditional welding,long-term use can save a lot of processing costs.

3.The control system is easy to operate, the laser beam quality is good, the welding speed is fast, the weld is firm and beautiful, the weld joint is smooth, the weld is flat and without porosity.The strength and toughness of the welding seam are at least equal to or even more than the base metal, less or No need polishing,saving labor and time costs.

4.Applicable to a variety of complex welding seams, overcome the limitations of the table, you can achieve any part of any angle of the work piece welding.Machine is integrated and less floorspace occupation,enabling outdoor welding.Processed continuously for 24 hours to meet the needs of industrial mass production and processing.

5.The only welding head in the market with 6 light spot modes, fully covering different light spots of point, line, circle, double circle, triangle and eight.

6.Laser source lifespan can last for over 100000h, basically maintenance-free.

Comparison item Laser welding Argon arc welding
Comparison item	Laser welding	Argon arc welding
Welding method	Spot welding or continuous	Spot welding
Applicable materials	Stainless steel, carbon steel, galvanized sheet,aluminum, etc.	Stainless steel, carbon steel, galvanized sheet
Thickness requirements	0.5—4mm	1—12mm
Workpiece deformation/undercut	Small	Big
Welding speed	0—8m/min	0—1m/min
Subsequent processing	Light or no sanding	Need polishing
Operation difficulty	Simple	Complex
Safety and environmental protection	Relatively safe and environmentally friendly	Not safe and environmentally friendly
Labor costs	General workers (can operate after simple training)	Professional welder
Wearing parts	Lens, nozzle	Argon
Supplies	Argon/Nitrogen	Argon

Technical Parameters
Power	1000W / 1500W / 2000W
Laser Source	Reci / MAX / JPT / Raycus
Cooling Chiller	Industrial Water Chiller
Inside Working Environment Temperature Range	15-35 ℃
Humidity Range of Working Environment	< 70% No Condensation
Welding Thickness Recommendations	0.5 – 3mm
Welding Gap Requirements	≤0.5mm
Working Voltage	220V / 380V
Dimension (LWH)	1200x650x1345mm
Net Weight	245-280KG
Gross Weight	280-320KG

Application

Handheld Fiber Laser Welding Machine can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.
